µChiller process
General characteristics

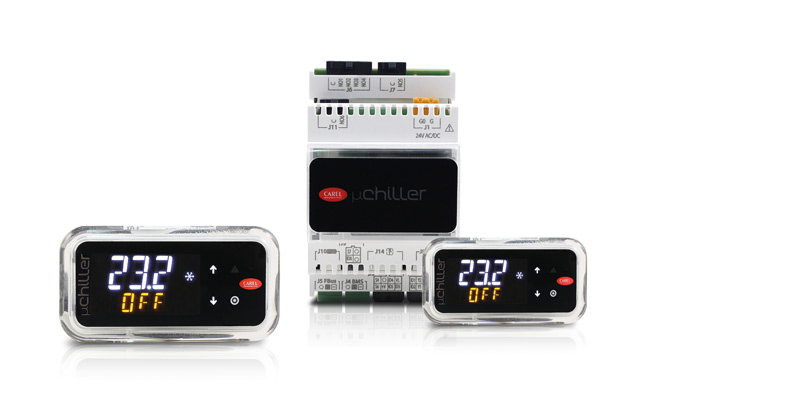

μChiller Process is the CAREL solution for complete management of air/water and water/water process chillers.
The maximum configuration manages 2 compressors in a single circuit. The distinctive element of μChiller Process is complete control of high-efficiency units through integrated management of two electronic valves (ExV) - expansion and hot gas bypass - and brushless BLDC compressors.This guarantees a prompt response of the compressor as well as higher protection and reliability, without however neglecting high unit efficiency.
The user terminal allows wireless connectivity with mobile devices and is built-in on the panel mounted models, or sold separately on DIN rail mounted models. The CAREL “APPLICA” app can be used to download and send operating logs relating to serious alarm situations that occur on the unit.
-
Plus
Usability
- Hot gas bypass and tank management.
- Two user pumps.
Efficiency and reliability
- Complete control of the compressor envelope, ensuring maximum reliability.
- Advanced management of DC inverter compressors with EEV synchronisation and protection functions.
Wireless connectivity with APPLICA
- Innovative graphic interface.
- Quick unit commissioning.
- Download and send data logs on alarm situations.
Refrigerants
Compatibility with natural refrigerants and low-GWP mixtures to meet the needs of unit manufacturers in terms of regulations such as F-Gas, EPA, ...
Video
Documentation
Technical
-
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +0300074IT Description μChiller Process Controllo per Chiller di processo Language ITA Date 24/01/2024 Release 1.4 Code +0300074EN Description μChiller Process Controller for process chillers Language ENG Date 24/01/2024 Release 1.4 Code +0300074DE Description μChiller Process Steuergerät für prozesstechnische Kältesätze Language GER Date 24/01/2024 Release 1.4 -
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +0500147IE Description μChiller Process Controllo elettronico per chiller di processo / Electronic control for process chiller Language ENG ITA Date 26/05/2022 Release 1.4
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000241IT Description Chiller di processo di piccola e media taglia - Soluzioni ad alta efficienza per applicazioni industriali di processo Language ITA Date 28/02/2024 Release 1.1 Code +3000241EN Description Small and medium-sized process chillers - High-efficiency solutions for industrial process applications Language ENG Date 28/02/2024 Release 1.1 Code +3000212IT Description μchiller process: La soluzione per unità chiller nell’industria Language ITA Date 11/09/2020 Release 1.0 Code +3000212EN Description μchiller process: The solution for chillers in industry Language ENG Date 11/09/2020 Release 1.0 Code +3000212DE Description μchiller process: Die Lösung für industrielle Kältesätze Language GER Date 11/09/2020 Release 1.0
Images
-
High resolution images
* Entries are ordered by date
Code Description Language Date * Release Code PH17LUC301-µChiller Description CAREL-HVAC controls-μChiller Series-μChiller Language ALL Date 01/09/2021 Release R.0
