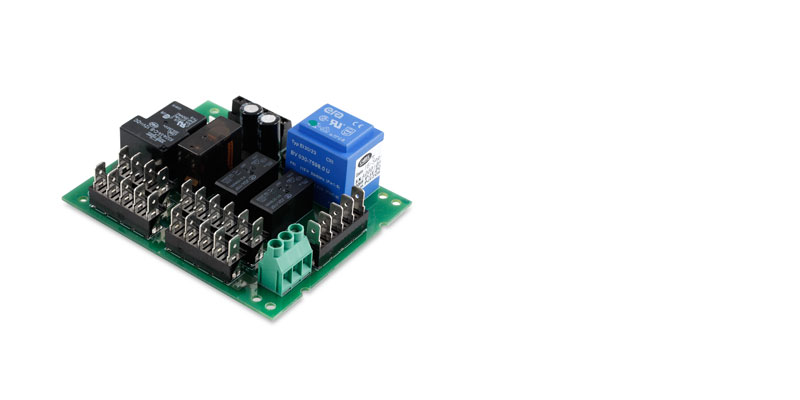

easy split is the new controller of the easy series for the control of low temperature or normal temperature refrigeration units fitted with inside lighting. The thin user terminal is separated by the power board and is suitable for standard insulation thickness. The easy cabling of the power board is supported by the integrated terminals for loads.
easy split manages up to two compressors, managing delayed activation in parallel or in two steps, including rotation.
Management of the compressor is handled by the 30 A relay, UL certified up to 96 LRA.
Special focus has been placed on Energy Saving, offering the possibility to manage the loads with tried-and-tested operating modes, such as night-time operation and fan management with compressors off. Management of the light associated with the door switch has been extended, differentiating the solutions for cabinets or cold rooms
- Brochure * Entries are ordered by date
Code Description Language Date * Release Code +3000011EN Description easy split: electronic controller for plug-in refrigeration units Language ENG Date 27/03/2019 Release 1.1 Code +3000011IT Description easy split: controllo elettronico per unità frigorifere a spina Language ITA Date 27/03/2019 Release 1.1
