humiSonic ventilation

UU*D*
humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems
humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems

  • Plus

    humiSonic for ducts enjoys all the benefits of ultrasound technology, plus additional new improvements developed by CAREL:

    • energy saving: just 10% of the power consumption of steam humidifiers;
    • reliability: 10,000 hours of uninterrupted operation guaranteed;
    • precision: relative humidity control of ±1% on the set point;
    • absorption efficiency: the droplets, just 5 µm in size, evaporate instantly;
    • complete solution: electrical and control panel together, everything humiSonic for ducts needs to start operating;
    • hygiene: stainless steel components, no water recirculation and periodical washing cycles.
  • General characteristics

    humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems, offering a high energy efficiency alternative to steam humidification.

    Energy consumption per kg of evaporated water is in fact 90% lower than with steam!

    Installed directly in the air flow, humiSonic can atomise water into very small droplets (5 µm on average), which are instantly absorbed.

    The new generation humiSonic embodies all the attention that CAREL has always paid to the hygiene of its humidification solutions. All components in contact with the water are made from stainless steel, and not water is left to stagnate in the main body at the end of the humidification cycle. In addition, the electronic controller manages periodical washing cycles when the system is not running.

    These hygiene features, together with the very high precision that humiSonic can achieve (±1% around the relative humidity set point), make it an ideal solution even for more critical and delicate applications, such as cleanrooms.

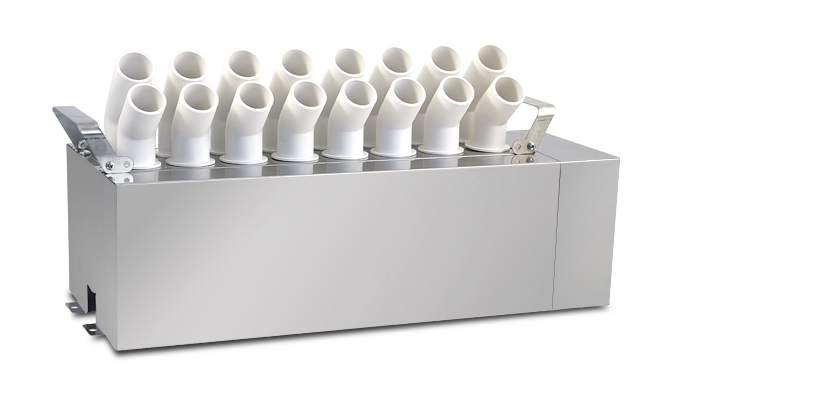

    humiSonic for air handling units comprises two elements that make it a powerful and complete solution: the main body (containing the piezoelectric transducers) and the electrical power supply and control panel.



Documentation

Technical

  • Manuals
    Code Description Language Date Release
    Code +0300063IT

    Description Umidificatori a ultrasuoni versione ventilation - condotta

    Language ITA

    Date 16/02/2016

    Release 1.0

    Code +0300063EN

    Description Ultrasonic humidiers ventilation - duct version

    Language ENG

    Date 16/02/2016

    Release 1.0

    Code +0300063FR

    Description Ultrasonic humidifiers version ventilation - conduite

    Language FRE

    Date 16/02/2016

    Release 1.0

    Code +0300063DE

    Description Ultraschallvernebler Version für Luftbehandlungsgeräte - Luftkanäle

    Language GER

    Date 16/02/2016

    Release 1.0

    Code +0300063PT

    Description Umidificadores de ultrassons versão ventilation - duto

    Language POR

    Date 16/02/2016

    Release 1.0


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000103ZH

    Description humiSonic 绝热式超声波加湿器

    Language CHI

    Date 01/11/2015

    Release 1.0

    Code +3000103IT

    Description humiSonic: Umidificatori adiabatici a ultrasuoni

    Language ITA

    Date 01/11/2015

    Release 1.0

    Code +3000103EN

    Description humiSonic Adiabatic ultrasonic humidifiers

    Language ENG

    Date 01/11/2015

    Release 1.0

    Code +3000103FR

    Description humiSonic Humidificateurs adiabatiques à ultrasons

    Language FRE

    Date 01/11/2015

    Release 1.0

    Code +3000103DE

    Description humiSonic Adiabatische Ultraschallvernebler

    Language GER

    Date 01/11/2015

    Release 1.0

    Code +3000103ES

    Description humiSonic Humidificadores adiabáticos por ultrasonidos

    Language SPA

    Date 01/11/2015

    Release 1.0
