RS485 card- FieldBus

PCO1xxFD10

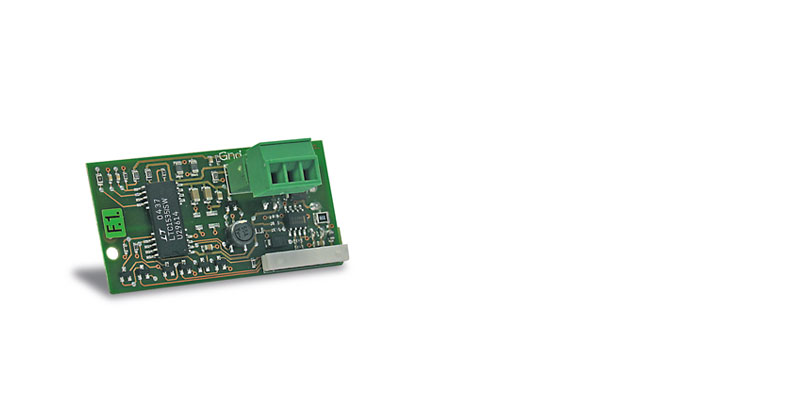

RS485 card- FieldBus

  • General characteristics

    The RS485 FieldBus card is used to connect the pCO sistema to devices that communicate using the CAREL proprietary protocol or Modbus RTU protocol, so as to collect information from these or send them commands.

    Modbus (modbus.org) is the most widely-used protocol in HVAC/R, being very simple to implement in all development packages and featuring limited use of the system's HW & SW resources. Reference website: Modbus.org.

    The RS485 FieldBus card is compatible with the entire range of pCOSistema controllers that feature a Fieldbus card slot: pCO1, pCO3, pCO5, pCO5+



Documentation

Technical

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050003270

    		 Description PCO100TLN0 / PCO100MPB0 / PCO100FD10 / PCO100FD30 scheda seriale tLAN, MP-Bus e RS485 per pCO1/ pCO3/pCO5 / tLAN, MP-Bus and RS485 serial card for pCO1/ pCO3/pCO5

    		 Language ENG  ITA

    		 Date 01/12/2011

    		 Release 1.2
