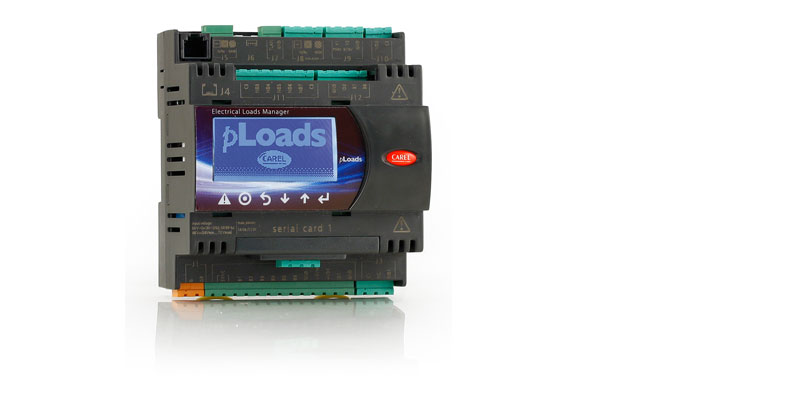

pLoads

PLO550*30U*00

  • Plus

    • Display, even on remote, of all electrical peaks via an unique user interface.
    • Identification of any abnormal sampling and energy waste
    • Alarms for exceeding the sampling thresholds
    • Scheduling of the loads using specific and detailed periods of time. with exception periods.
    • Flexibility in installation thanks to wireless network support on the Carel rTM standard system.
    • It is able to interface with standard pRack control system (cod. PRK*00*); these two control systems allow you to limit or modulate the supplied refrigerating power, optimising the electrical consumption as to avoid absorption peaks and maintaining at the same time proper functioning of the refrigerating unit.
  • General characteristics

    pLoads is a control system for intelligent management of energy consumption. It allows interface with three-phase energy counter 'Carel emeter3' and some of the most common three-phase energy counters on the market.
    Available in two sizes (Compact and Large) manages scheduling up to maximum 12 electrical loads.
    Its main feature is the possibility of performing load cutting on thresholds of:
    - Power (kW)
    - Apparent power (kVA)
    - Energy (kWh)
    This allows punctual control on the consumption peaks and helps to avoid exceeding the punitive tariff plans. The loads detachment due to overcoming the consumption threshold respects specific periods of safety and priority foe each load that can be set by the user from remote.
    It also allows the memorisation on Energy, Water and Gas consumption using tools that provide impulses signals.


Documentation

Technical

  • Quick Guide
    Code Description Language Date Release
    Code +040000130

    Description pLoads-Manuale d’uso: soluzione per il controllo dell’energia

    Language ITA

    Date 05/06/2013

    Release 1.3

    Code +040000131

    Description pLoads-User manual: Energy control solution

    Language ENG

    Date 05/06/2013

    Release 1.3

    Code +040000132

    Description pLoads Solution pour le contrôle de l'énergie

    Language FRE

    Date 05/06/2013

    Release 1.3


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000039RU

    Description pLoads

    Language RUS

    Date 01/02/2013

    Release 1.2

    Code +3000039IT

    Description pLoads: Il partner ideale nella supervisione e controllo dell’energia

    Language ITA

    Date 01/02/2013

    Release 1.2

    Code +3000039DE

    Description pLoads: Der ideale Partner für das Energiemanagement

    Language GER

    Date 01/02/2013

    Release 1.2

    Code +3000039EN

    Description pLoads: The ideal partner for energy supervision and control

    Language ENG

    Date 01/02/2013

    Release 1.2

    Code +3000039ES

    Description pLoads: El partner ideal en la supervisión y en el control de la energía

    Language SPA

    Date 01/02/2013

    Release 1.2

    Code +3000039FR

    Description pLoads: Le partenaire idéal pour la surveillance et la régulation de l’énergie

    Language FRE

    Date 01/02/2013

    Release 1.2

    Code +3000039ZH

    Description pLoads: 能耗监测与控制的最佳产品

    Language CHI

    Date 01/10/2012

    Release 1.1

    Code +3000039PT

    Description pLoads: O colaborador ideal na supervisão e controle da energia

    Language POR

    Date 01/10/2012

    Release 1.1
