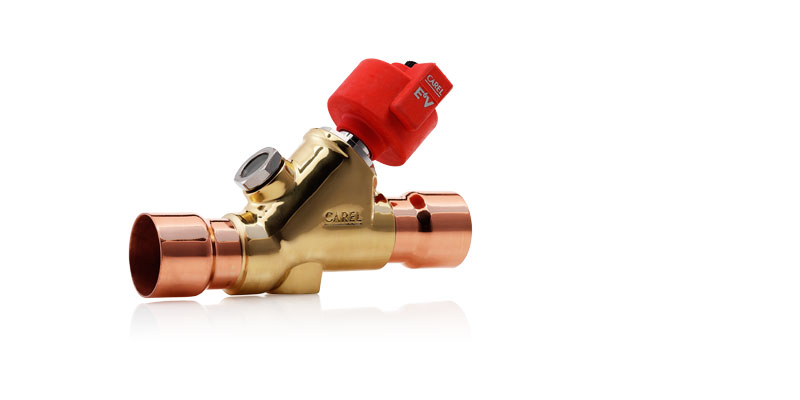

E6V

E6V valves, designed for high capacity chillers, air-conditioning systems and heat pumps.
  • General characteristics

    The E5V, E6V, E7V valves complete the Carel range of electronic expansion valves, and are designed for high capacity chillers, air-conditioning systems and heat pumps. These devices have been developed with the aim of meeting the typical energy saving requirements of these systems, where optimum control is an essential factor in terms of costs and management.
    The E5V, E6V, E7V valves allow two-way flow, with refrigerant inlet and outlet in-line: this means the pressures involved are perfectly balanced; they also come with an incorporated sight glass, used to monitor movement of the movable element and refrigerant flow inside the circuit. Flow is controlled effectively even at low flow-rates, thanks to the design of the movable element with equal percentage characteristic.
    The modular design of the Carel valves for high capacity solutions simplifies maintenance and inspection of the individual parts, as the valves are made using removable components that can be assembled during installation.

    The E6V valves cover a range of cooling capacities up to 1300 kW; available in one size only, with 36 ohm two-pole motor.









Documentation

Technical

  • Technical Leaflets
    Code Description Language Date Release
    Code +050001365

    Description E5V, E6V, E7V - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    Language ENG  FRE  GER  ITA  SPA

    Date 27/06/2017

    Release 3.8

    Code +05C001365

    Description E5V, E6V, E7V - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / 电子膨胀阀

    Language CHI  ENG  FRE  GER  ITA

    Date 07/03/2016

    Release 3.5


Commercial

  • Application Note
    Code Description Language Date Release
    Code +4000022IT

    Description La valvola di espansione elettronica - una soluzione per ridurre le inefficienze energetiche all’avviamento

    Language ITA

    Date 18/04/2013

    Release 1.0

  • Brochure
    Code Description Language Date Release
    Code +3000021ZH

    Description 高效机组的集成解决方案

    Language CHI

    Date 01/03/2010

    Release 1.0
