humiDisk

UC*

  • Plus

    • easy to install and use
    • guaranteed performance and versatility in all conditions, thanks to a rapid absorption of the droplets produced
    • large and complete accessory kit (electrical panel, humidistat, anti-freeze resistance, UV lamp)
    • reduced dimensions thanks to the predisposition for wall installation
  • General characteristics

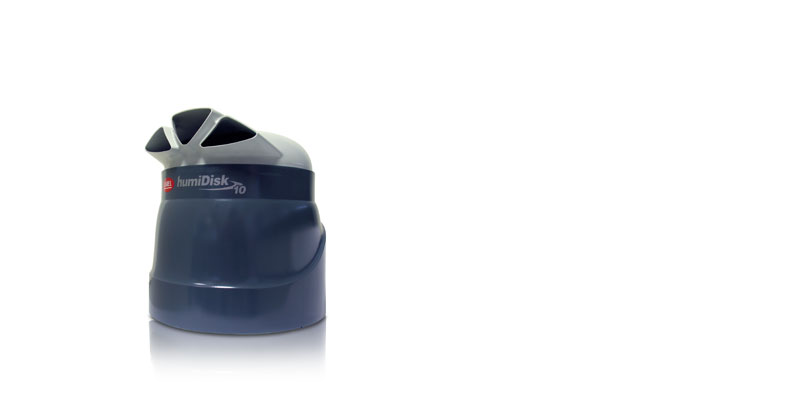

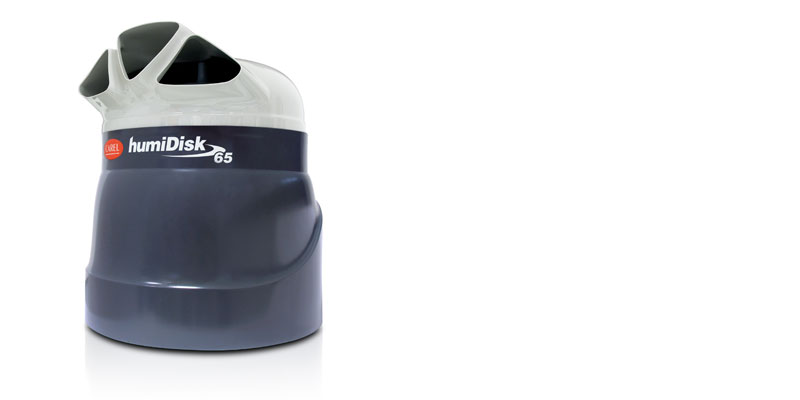

    humiDisk is a centrifugal humidifier that uses a rotating disk to atomize the water into millions of tiny droplets which, driven by a built-in fan, are released into the environment humidifying and cooling the air. humiDisK is available in two versions: the version with a capacity of 1.0 l/h is compact, easy to use and can be controlled by an external switch or by a humidistat; the version with a capacity of 6.5 l/h, in addition to the bigger size and capacity, also offers the possibility to be controlled by an external electrical panel (optional), which allows the modulation of the capacity produced (from 1.1 to 6.5 l/h), the management of washing cycles at the start and end of the cycle and the activation and control of the anti-freeze device (also optional). Thanks to the ability to work at low temperatures (≥ 1°C) and to the very thin diameter of the droplets produced, humiDisk is particularly suitable for installation in refrigerating rooms and in storage warehouses for products like fruit and vegetables. However, the compact design and the excellent performance make humiDisk a versatile product for many other applications, such as the direct humidification of printing industries, textile industries, etc.
    humiDisk can be used both with demineralized water and mains water.


Documentation

Technical

  • Manuals
    Code Description Language Date Release
    Code +030222023

    Description humiDisk. дисковый увлажнитель

    Language RUS

    Date 24/10/2017

    Release 2.4

    Code +030222022

    Description humiDisk: humidificador centrífugo/ centrifugal humidifier

    Language ENG  SPA

    Date 24/10/2017

    Release 2.4

    Code +030222021

    Description humiDisk: Humidificateur centrifuge/ Zentrifugalbefeuchter

    Language FRE  GER

    Date 24/10/2017

    Release 2.4

    Code +030222020

    Description humiDisk: umidificatore centrifugo/ centrifugal humidifier

    Language ENG  ITA

    Date 24/10/2017

    Release 2.4


Commercial

  • Brochure
    Code Description Language Date Release
    Code +3000018ZH

    Description 湿度问题! CAREL解决方案 满足您的加湿需求

    Language CHI

    Date 19/02/2015

    Release 3.0

    Code +3000018PT

    Description A humidade é importante! Soluções CAREL para as suas necessidades de humidificação

    Language POR

    Date 19/02/2015

    Release 3.0

    Code +3000018FR

    Description L’humidité est importante! Les humidificateurs CAREL, une solution pour chaque application

    Language FRE

    Date 19/02/2015

    Release 3.0

    Code +3000018ES

    Description ¡La humedad es importante! Soluciones CAREL para sus necesidades de humectación

    Language SPA

    Date 19/02/2015

    Release 3.0

    Code +3000018EN

    Description Humidity matters! CAREL solutions for your humidification needs

    Language ENG

    Date 19/02/2015

    Release 3.0

    Code +3000018DE

    Description Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jeden Bedarf.

    Language GER

    Date 19/02/2015

    Release 3.0

    Code +3000018IT

    Description L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta

    Language ITA

    Date 19/02/2015

    Release 3.0

    Code +30U0018EN

    Description Humidity matters! CAREL solutions for your humidification needs ( USA)

    Language ENG

    Date 01/10/2012

    Release 2.0

    Code +3000018FI

    Description Kosteudella on merkitystä! CAREL kostuttimet, ratkaisu kostutustarpeisiin.

    Language FIN

    Date 01/10/2012

    Release 2.0

    Code +3000018SV

    Description Fukt är viktigt! Med befuktare från CAREL inns det en lösning för alla behov

    Language SWE

    Date 01/10/2012

    Release 2.0

    Code +3000018CS

    Description Na vlhkosti záleží! CAREL - řešení Vašich potřeb zvlhčování

    Language CZE

    Date 01/10/2012

    Release 2.0

    Code +302235433

    Description Контроль влажности в текстильной промышленности

    Language RUS

    Date 02/07/2007

    Release 1.0

    Code +302240438

    Description humiDisk: Для холодильных камер и складских помещений

    Language RUS

    Date 15/05/2007

    Release 2.0

    Code +302240434

    Description humiDisk: Para cámaras frigoríficas y pequeños ambientes

    Language SPA

    Date 15/05/2007

    Release 2.0

    Code +302240433

    Description humiDisk: Für Kühl- und Lagerräume

    Language GER

    Date 15/05/2007

    Release 2.0

    Code +302240432

    Description humiDisk: Pour chambres froides et petits locaux

    Language FRE

    Date 15/05/2007

    Release 2.0

    Code +302240431

    Description humiDisk: For cold rooms and store rooms

    Language ENG

    Date 15/05/2007

    Release 2.0

    Code +30C240431

    Description 适宜的新鲜度?

    Language CHI

    Date 15/05/2007

    Release 1.0

    Code +302240430

    Description humiDisk: Per celle frigorifere e piccoli ambienti

    Language ITA

    Date 15/05/2007

    Release 2.0

    Code +302239436

    Description Решения для витрин и холодильных камер

    Language RUS

    Date 01/10/2006

    Release 1.0

    Code +302239434

    Description Soluciones para muebles y cámaras frigoríficas

    Language SPA

    Date 01/10/2006

    Release 1.0

    Code +302239433

    Description Lösungen für Kühlmöbel und Kühlräume

    Language GER

    Date 01/10/2006

    Release 1.0

    Code +302239432

    Description Solutions pour comptoirs et cellules frigorifiques

    Language FRE

    Date 01/10/2006

    Release 1.0

    Code +302235381

    Description solutions for tobacco industry

    Language ENG

    Date 15/01/2006

    Release 1.0

    Code +302235380

    Description soluzioni per l’industria del tabacco

    Language ITA

    Date 15/01/2006

    Release 1.0

    Code +302235382

    Description solutions pour l’industrie du tabac

    Language FRE

    Date 15/01/2006

    Release 1.0

    Code +302235383

    Description Lösungen für die Tabakindustrie

    Language GER

    Date 15/01/2006

    Release 1.0

    Code +302235384

    Description soluciones para la industria del tabaco

    Language SPA

    Date 15/01/2006

    Release 1.0

    Code +302239431

    Description Solutions for showcases and cold rooms

    Language ENG

    Date 01/10/2005

    Release 1.0

    Code +302239430

    Description Soluzioni per banchi e celle frigorifere

    Language ITA

    Date 01/10/2005

    Release 1.0
